Pneumatic Vise Actuator
Durable design that is easy to install after part setup

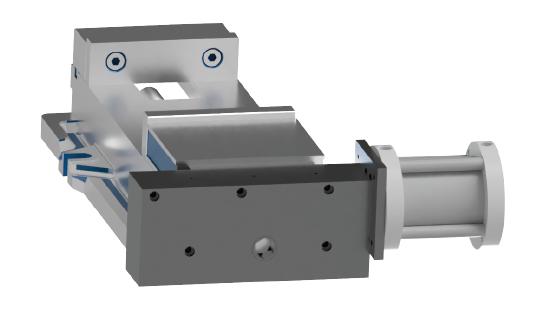

The Pneumatic Vise Actuator is designed for efficient operation and
reliability in lights out operations. It delivers repeatable pressure
with a substantial 53 ft-lbs of torque when supplied with 100 PSI of air
pressure, ensuring robust gripping force for secure part clamping.

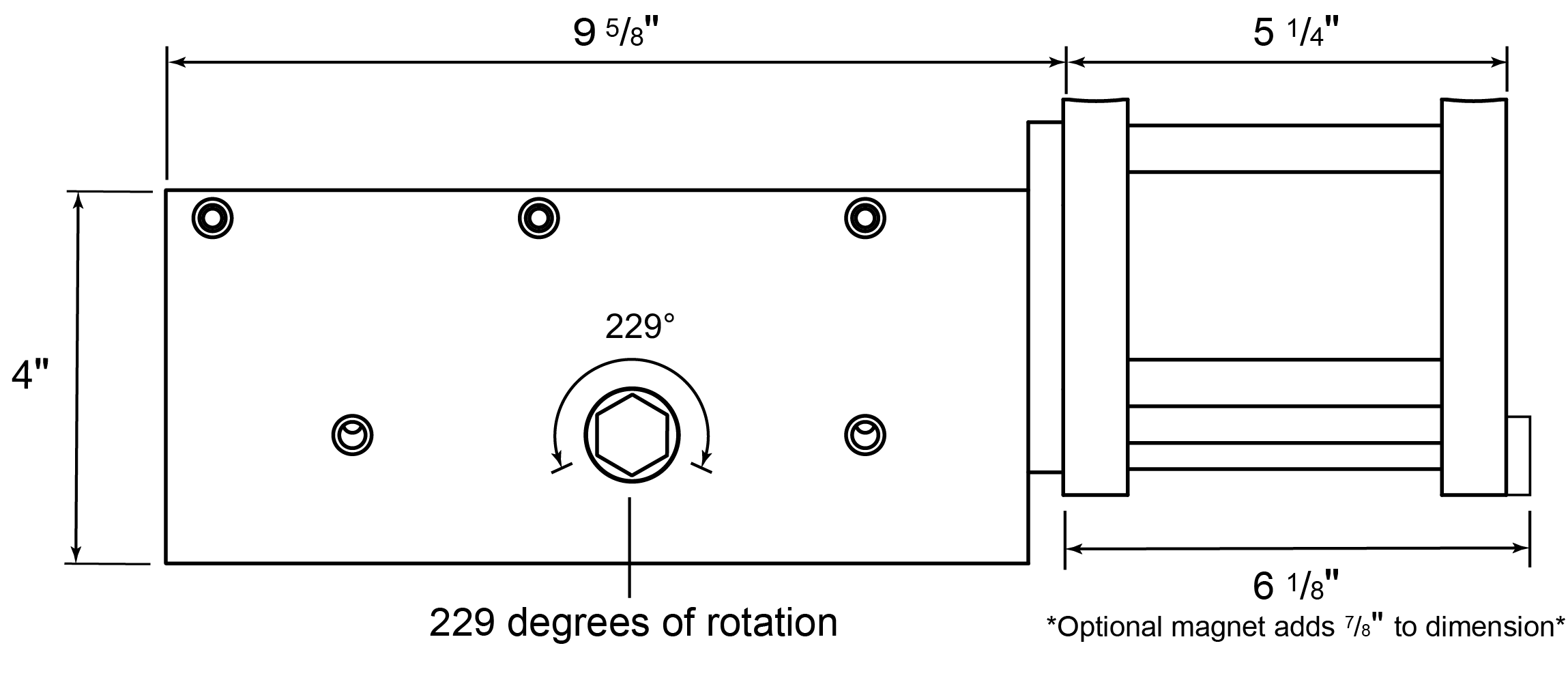

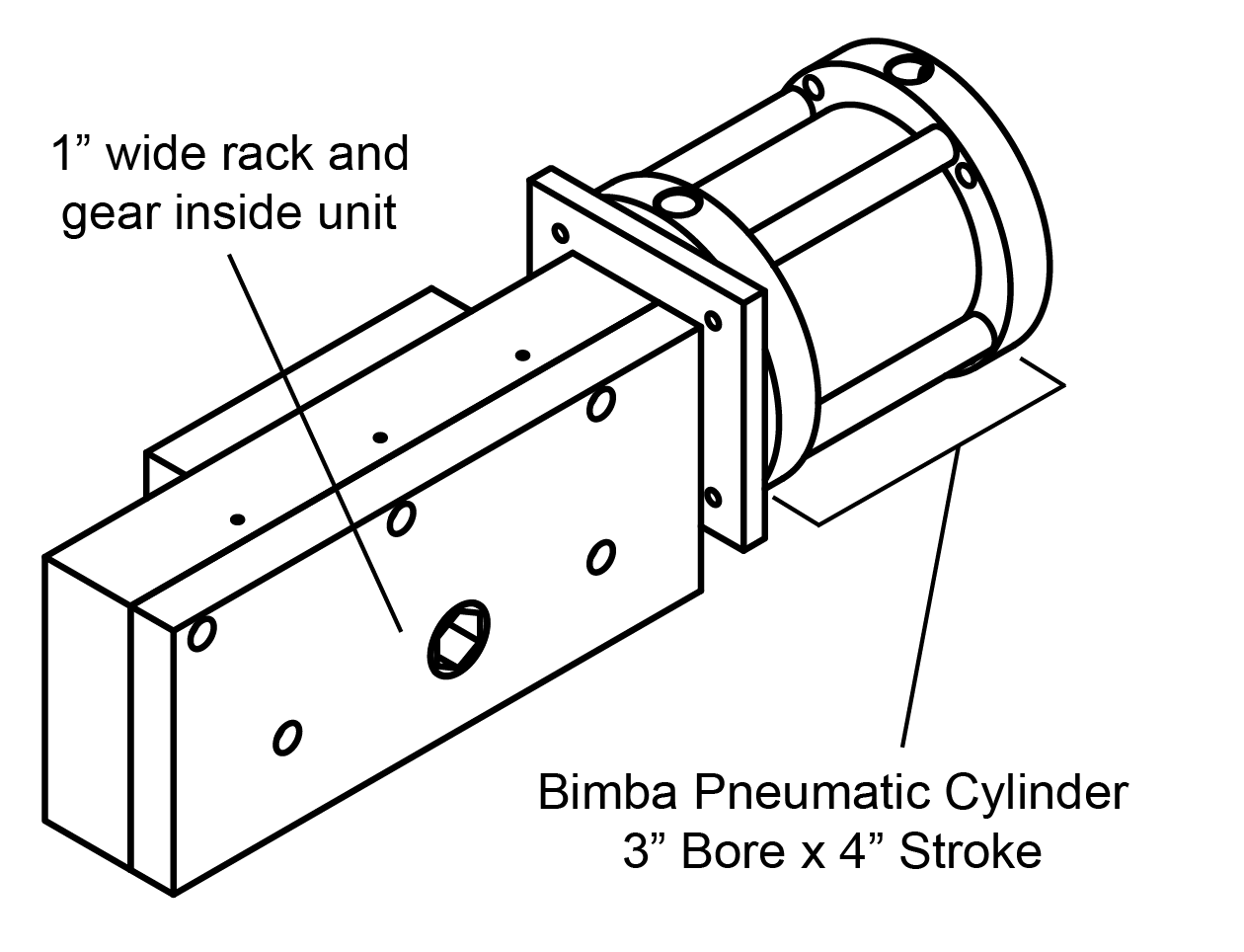

Featuring a generous 229 degrees of rotation, the actuator offers
versatility in positioning and accommodating various workpiece sizes.
| Input Pressure (PSI) | Closing Torque (ft-lbs) | Opening Torque (ft-lbs) | Vise Pressure (PSI) |
|---|---|---|---|
| 20 | 10.8 | 11.8 | 906.6 |
| 40 | 21.5 | 23.6 | 1813.1 |
| 60 | 32.3 | 35.3 | 2719.7 |
| 80 | 43.1 | 47.1 | 3626.2 |
| 100 | 53.8 | 58.9 | 4532.8 |
| 120 | 64.6 | 70.7 | 5493.3 |

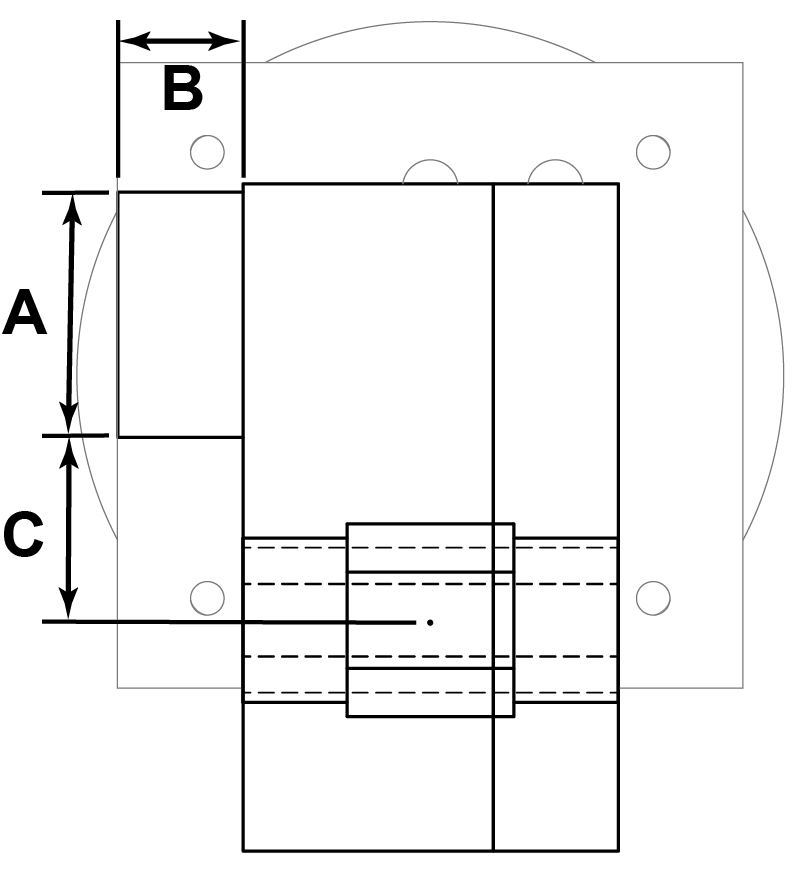

Block Dimensions Based on Vise Brand
| Vise | A | B | C (Vise Center to Top) |
|---|---|---|---|
| Kurt DX6 | 1.45" | 0.75" | 1.126" |
| Kurt D688 | 1.24" | 0.75" | 1.335" |
| Kurt 360 | 1.69" | 0.75" | 0.937" |
| Haas | 1.24" | 1.0" | 1.335" |
